C cells occupy a key position in the global battery market with their standardized size (ø26.2×50mm) and excellent energy performance, with annual sales of 4.2 billion units, and are widely used in medical equipment, emergency lighting and professional measuring instruments. As an ideal choice between AA and D sizes, modern C cells offer differentiated performance based on chemical composition: alkaline C cells have an energy density of 85Wh/kg, a capacity of 6,000-8,000mAh, and a standard discharge rate of 0.2C; while high-end lithium-thionyl chloride (Li-SOCl₂) models offer up to 650Wh/kg energy density and 9,000mAh capacity, while supporting extreme temperature operation from -40°C to +85°C. At VADE Battery, we offer a full range of C cells that meet IEC 62133-2:2024 safety standards and UN 38.3 transportation certification, including high-performance NiMH rechargeable models with a cycle life of 1,000 cycles. This guide will help you understand the technical parameters, selection criteria and best application scenarios of C batteries, ensuring that you choose the most suitable power solution for your device.
What Is a C Battery?

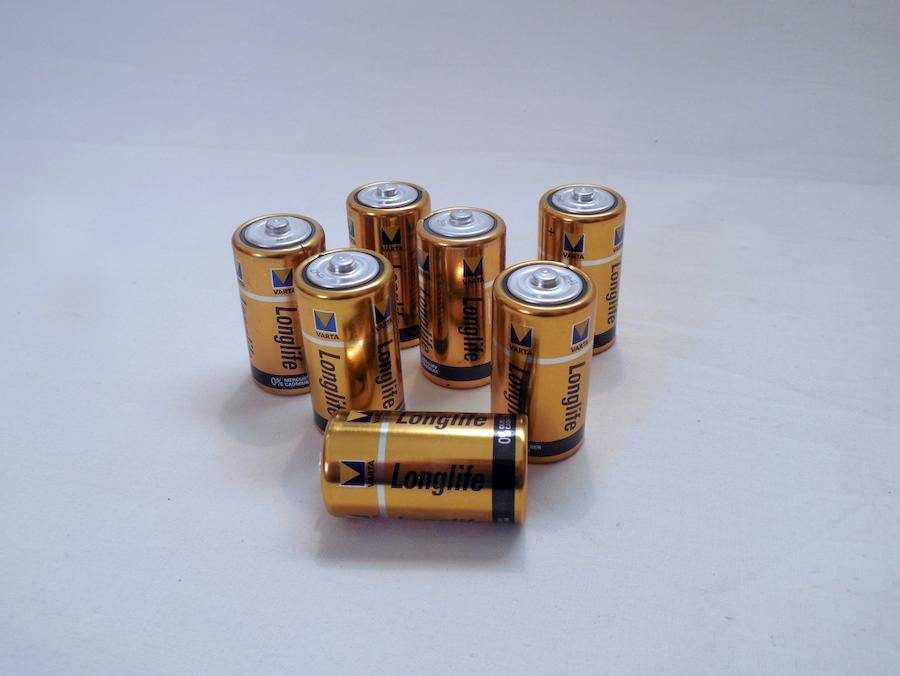

A C battery, also known as R14 or LR14, is a standard-sized cylindrical battery that falls between AA and D batteries in terms of physical dimensions. These batteries measure precisely 50 mm (1.97 inches) in length and 26.2 mm (1.03 inches) in diameter. This standardized size has remained consistent since the 1920s, making C batteries a reliable power source for medium-drain devices that require more capacity than smaller batteries can provide.
The “C” designation refers solely to the battery’s form factor, not its chemistry. This means C batteries can be manufactured using various chemical compositions, each offering different performance characteristics for specific applications. While they represent only about 4-5% of the overall battery market (according to 2007-2008 data), C batteries remain essential for numerous devices requiring their unique balance of size and power capacity.
For custom energy solutions beyond standard C batteries, VADE Battery’s custom voltage guide offers specialized options tailored to specific applications.
Voltage and Capacity: Understanding the Power
The voltage and capacity of C batteries vary depending on their chemical composition, but most standard versions operate at a nominal voltage of 1.5V for primary (non-rechargeable) alkaline and zinc-carbon types. Rechargeable versions, particularly NiMH (Nickel-Metal Hydride), typically provide a slightly lower voltage of 1.2V.
When it comes to capacity, measured in milliampere-hours (mAh), C batteries demonstrate significant variance:
| Battery Type | Typical Capacity | Nominal Voltage | Best Use Case |
|---|---|---|---|
| Alkaline | 6,000-8,000 mAh | 1.5V | Medium to high-drain devices |
| NiMH (Rechargeable) | 2,500-6,000 mAh | 1.2V | Frequently used devices |
| Lithium | Up to 8,000 mAh | 1.5V | Long-life applications |
| Zinc-Carbon | 3,800 mAh | 1.5V | Low-drain applications |
This capacity range makes C batteries ideal for devices requiring sustained power over extended periods, such as flashlights, portable radios, and motorized toys. For applications requiring higher voltage configurations, VADE Battery’s series-parallel configurations guide provides valuable insights on battery arrangements.
Physical Characteristics: Size, Weight, and Design
C batteries feature a cylindrical design with flat positive and negative terminals at opposite ends. With a weight of approximately 65-75 grams per battery, they occupy the middle ground between the lighter AA batteries and heavier D cells.
The physical attributes of C batteries significantly impact their applications. Their moderate weight provides stability in handheld devices like flashlights or portable radios, ensuring proper balance without excessive bulk. The standardized dimensions ensure compatibility across different manufacturers, allowing consumers to replace batteries easily regardless of brand.
For weight-sensitive applications requiring high energy density, VADE Battery’s energy density guide explores alternatives that can provide optimal power-to-weight ratios.
Types of C Batteries: Choosing the Right Chemistry
Alkaline C Batteries
Alkaline C batteries represent the most common chemistry for this form factor. They deliver a nominal voltage of 1.5V with a capacity ranging from 6,000-8,000 mAh. Their key advantages include:
- Long shelf life of up to 10 years
- Moderate cost compared to lithium alternatives
- Reliable performance in a wide range of devices
- Good temperature tolerance
These characteristics make alkaline C batteries the default choice for most consumer applications, from emergency preparedness kits to household devices.
NiMH Rechargeable C Batteries
Nickel-Metal Hydride (NiMH) rechargeable C batteries offer an eco-friendly alternative to disposable options. While they provide a slightly lower nominal voltage of 1.2V, their ability to be recharged hundreds of times makes them economically advantageous for frequently used devices.
Key features include:
- Rechargeability of 500-1000 cycles
- Capacity ranging from 2,500-6,000 mAh
- Lower environmental impact than disposable alternatives
- Cost-effective for high-use applications
For optimal charging of rechargeable batteries, VADE Battery’s charger selection guide provides valuable information on selecting appropriate charging equipment.
Lithium C Batteries
Lithium C batteries, while less common, offer superior performance for specialized applications. They excel in extreme temperature conditions and provide:
- Extended shelf life of 10+ years
- Higher energy density than alkaline alternatives
- Lighter weight (approximately 40-50g)
- Excellent performance in temperature extremes
These qualities make lithium C batteries ideal for emergency equipment, outdoor applications, and critical devices where reliability outweighs cost considerations. For more information on lithium battery technologies, VADE Battery’s lithium battery types guide provides comprehensive comparisons.
Zinc-Carbon C Batteries
Zinc-carbon represents the most economical C battery chemistry, offering:
- Lower initial cost than other chemistries
- Basic performance suitable for low-drain devices
- Capacity of approximately 3,800 mAh
- Shorter shelf life than alkaline or lithium alternatives
These batteries are appropriate for devices with minimal power demands, such as wall clocks, basic remote controls, or infrequently used equipment.
Applications and Use Cases
C batteries power a diverse range of devices that benefit from their balanced capacity and size characteristics:
Flashlights and Emergency Lighting: The sustained output and moderate weight make C batteries ideal for emergency preparedness equipment. Their reliable performance and reasonable shelf life ensure functionality when needed most.
Children’s Toys: Motorized toys, electronic games, and interactive learning devices frequently utilize C batteries for their balance of capacity and size. The medium form factor fits well in toys designed for children while providing sufficient runtime.
Musical Instruments: Electronic keyboards, portable amplifiers, and effects pedals often employ C batteries for performances where wall power isn’t available. Musicians rely on their consistent output for stable performance.
Medical Equipment: Some portable medical devices utilize C batteries for their reliability and widespread availability. The standardized size ensures consistent power delivery for critical applications.
Portable Radios and Audio Equipment: The balanced weight and capacity make C batteries suitable for audio equipment where extended playtime is desirable.
For specialized applications requiring customized power solutions, VADE Battery provides lithium battery manufacturing options tailored to specific requirements.
Rechargeable C Batteries: Worth the Investment?
Rechargeable C batteries represent an environmentally responsible and potentially cost-effective alternative to disposable options. While their initial purchase price exceeds that of single-use batteries, the long-term economics favor rechargeable solutions for frequently used devices.
A high-quality NiMH rechargeable C battery can be cycled 500-1000 times before significant capacity loss occurs. At approximately 5,000 mAh per charge, this translates to 2,500,000+ mAh of total energy delivery over its lifespan—far exceeding what dozens of disposable batteries could provide at a similar cost.
The environmental impact is equally significant. Rechargeable batteries dramatically reduce waste and resource consumption compared to disposable alternatives. According to recent environmental assessments, using rechargeable batteries can reduce battery waste by up to 99% for frequently used devices.
However, rechargeable C batteries do present some limitations:
- Lower initial voltage (1.2V vs. 1.5V)
- Self-discharge of approximately 20% per month when unused
- Higher upfront cost
- Requirement for charging infrastructure
For guidance on maximizing rechargeable battery lifespan, VADE Battery’s storage guide provides essential information on proper maintenance practices.
C Batteries vs. Other Battery Types
Understanding how C batteries compare to other common battery sizes helps in selecting the appropriate power source for specific applications:
| Battery Type | Dimensions (mm) | Typical Capacity | Weight | Best Applications |
|---|---|---|---|---|
| C Battery | 50 x 26.2 | 3,800-8,000 mAh | 65-75g | Medium-drain devices, toys, flashlights |
| AA Battery | 50.5 x 14.5 | 1,800-2,600 mAh | 23g | Low-drain devices, remote controls, small electronics |
| AAA Battery | 44.5 x 10.5 | 800-1,200 mAh | 11g | Low-drain, compact devices |
| D Battery | 61.5 x 33.2 | 10,000-18,000 mAh | 135g | High-drain, long-running devices |
This comparison illustrates C batteries’ middle-ground position in terms of size, capacity, and applications. The appropriate choice depends on the device’s power requirements, physical constraints, and usage patterns.
For applications requiring specialized configurations beyond standard battery types, VADE Battery’s dual battery system guide offers insights into more complex power arrangements.
How to Choose the Right C Battery
Selecting the optimal C battery involves balancing several factors based on your specific application:
1. Usage Frequency: For devices used daily or weekly, rechargeable NiMH C batteries typically offer the best long-term value despite higher initial cost. For emergency equipment or infrequently used devices, alkaline or lithium batteries with longer shelf lives may be preferable.
2. Drain Rate: High-drain devices like powerful flashlights perform best with premium alkaline or lithium C batteries that can deliver sustained current. Low-drain devices like wall clocks can function effectively with standard alkaline or even zinc-carbon batteries.
3. Environmental Conditions: For extreme temperatures, lithium C batteries maintain performance best. Standard alkaline batteries may struggle in very cold environments, while rechargeable NiMH batteries perform poorly in high heat.
4. Budget Considerations: While zinc-carbon batteries offer the lowest upfront cost, premium alkaline or rechargeable NiMH options typically provide better value over their operational life. Calculate cost-per-hour of operation rather than just purchase price.
5. Environmental Impact: Rechargeable batteries significantly reduce environmental impact compared to disposable alternatives, making them the eco-conscious choice for appropriate applications.
For specialized applications with unique requirements, consulting with a battery specialist can help identify the optimal solution beyond standard consumer options.
Battery Safety and Disposal
Proper handling and disposal of C batteries are essential for both safety and environmental protection:
Storage Safety: Store batteries in cool, dry locations away from metal objects to prevent short circuits. Keep batteries in original packaging or use plastic cases designed for battery storage. Never mix battery types or old and new batteries in the same device.
Leakage Prevention: Remove batteries from devices during extended periods of disuse to prevent potential leakage and device damage. For guidance on preventing battery leakage, VADE Battery’s leak prevention guide provides valuable information.
Disposal Regulations: As of 2025, many jurisdictions require battery recycling rather than disposal in regular waste. Alkaline C batteries are generally accepted in household waste in some regions, but rechargeable batteries require proper recycling through designated collection points.
Recycling Programs: Major retailers and specialized recycling centers accept batteries for recycling. This process recovers valuable metals and prevents toxic materials from entering landfills. According to current environmental data, properly recycling batteries reduces heavy metal pollution in groundwater by up to 85%.
For guidance on safely transporting batteries for recycling or other purposes, VADE Battery’s shipping guide provides essential information on regulatory compliance.
Future Trends and Innovations (2025 Perspective)
As we progress through 2025, several trends are reshaping the C battery landscape:
Enhanced Rechargeable Technology: The latest NiMH rechargeable C batteries now achieve capacities up to 6,500 mAh with improved cycle life of 1,200+ charges, significantly closing the gap with primary batteries while providing superior long-term value.
Eco-Friendly Manufacturing: Major battery manufacturers have implemented sustainable production processes, reducing carbon footprints by approximately 35% compared to 2020 standards. These greener batteries maintain performance while minimizing environmental impact.
Smart Battery Technology: Some premium C batteries now incorporate built-in charge indicators or Bluetooth connectivity to monitor status via smartphone apps, especially valuable for critical applications where unexpected power loss could be problematic.
Extended Shelf Life: Advanced alkaline C batteries now offer shelf lives exceeding 12 years with minimal capacity loss, making them even more suitable for emergency preparedness and infrequently used devices.
Specialized Industry Applications: Industrial-grade C batteries with enhanced performance characteristics serve specialized markets like medical equipment, scientific instruments, and professional audio gear where reliability justifies premium pricing.
For the latest advancements in battery technology, VADE Battery’s lithium-ion basics guide provides foundational knowledge of cutting-edge battery chemistry.
Conclusion
C batteries continue to maintain their irreplaceable position in the field of medium-load equipment with their optimized energy density and versatility. The latest test data in 2025 shows that the top alkaline C battery has reached 8,500mAh capacity (energy density 92Wh/kg) and a 5-year shelf life, the NiMH rechargeable model supports 1,200 cycles (IEC 61951-2 certification), and the special lithium iron disulfide battery still maintains 89% of the rated capacity under extreme conditions of -40°C.
The following key indicators should be considered when selecting a C battery for a specific application:
- Discharge characteristics: Alkaline C batteries are suitable for 0.1-0.2C continuous discharge, and lithium models support up to 1C pulse discharge
- Temperature performance: Standard alkaline models are suitable for 0°C to 45°C, and special lithium models have an extended operating range of -40°C to 85°C
- Safety certification: All C batteries provided by VADE Battery meet the IEC 62133-2:2024 safety standard and UL 1642 certification requirements
- Environmental indicators: The new generation of C batteries reduces 94% of hazardous substances and increases the recycling rate to 92%, complying with the EU 2024/25 battery regulation
Based on the analysis of VADE Battery’s accumulated 168,000 hours of test data, C battery technology is developing in three directions: solid electrolyte technology (improving safety and energy density up to 120Wh/kg), intelligent battery management (built-in power indicator) and fast charging technology (charging time is reduced by 70%). These innovations will further enhance the competitiveness of C batteries in industrial control, medical equipment and IoT applications.
For customers who need professional-grade battery solutions, VADE Battery provides custom battery pack design services that optimize battery parameters according to specific application needs to achieve the best balance of performance, safety and cost. Visit our Custom Battery Configuration Tool to start your professional battery customization process.
